INA ZKLF2575-2RS-2AP-XL Axial Angular Contact Bearing
INA ZKLF2575-2RS-2AP-XL
Axial Angular Contact Bearing
- Heavy duty version
- 60 degree contact angle
- Rubber lip seals on both sides and greased for life
- Four rows of ball bearings
- Supports both radial and high axial loads
Price excl. VAT
£695.00
In stock
INA ZKLF2575-2RS-2AP-XL
Axial Angular Contact Bearing
ZKLF double row axial angular contact ball bearings have four rows of ball bearings with a contact angle of 60 degrees supporting both radial and extremely high axial loads. ZKLF XL series are a solution for heavy duty applications where low positional accuracy is acceptable. Rubber lip seals on both sides and greased for life which is often suffiicient for the majority of applications. The bearings can be re-lubricated if necessary. Please see our technical guide here for step by step instructions for re-lubrication. The ZKLF bearing range are designed to be screw mounted directly on the adjacent construction or in a radial locating bore.

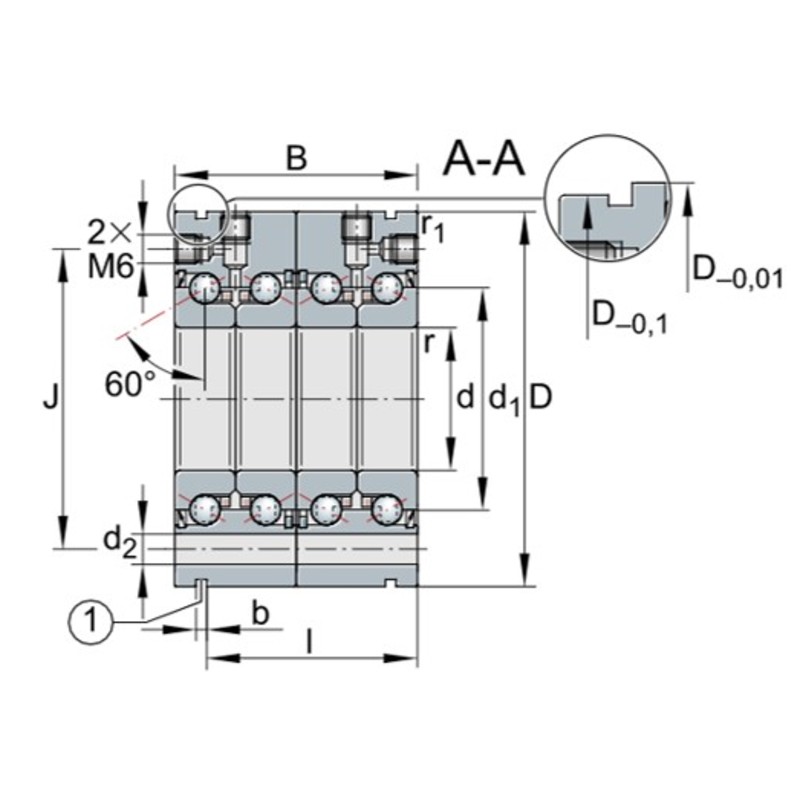

Dimensions:
Internal bore diameter: 25mm
External diameter: 75mm
Width: 56mm
Click here for full technical data on the INA Bearings website. INA are exceptionally well manufactured, high precision bearings from The Schaeffler Group based in Herzogenaurach, Germany.
