INA ZKLF3080-2RS-PE Axial Angular Contact Bearing
- INA ZKLF3080-2RS-PE
- Precision economy version
- 60 degree contact angle
- Rubber lip seals on both sides and greased for life
- Two rows of ball bearings
- Supports both radial and high axial loads
Price excl. VAT
£225.00
In stock
INA ZKLF3080-2RS-PE
Axial Angular Contact Bearing
INA ZKLF3080-2RS-PE double row axial angular contact ball bearings have two rows of ball bearings with a contact angle of 60 degrees supporting both radial and high axial loads. Rubber lip seals on both sides and greased for life which is often suffiicient for the majority of applications. The bearings can be re-lubricated if necessary. Please see our technical guide here for step by step instructions for re-lubrication.
The ZKLF bearing range are designed to be screw mounted directly on the adjacent construction or in a radial locating bore. The Precision Economy PE series are a solution for precision applications where lower positional accuracy and wider tolerances are acceptable. Where this is not acceptable please select an alternative designation - ZKLF3080 2RS XL is recomended.

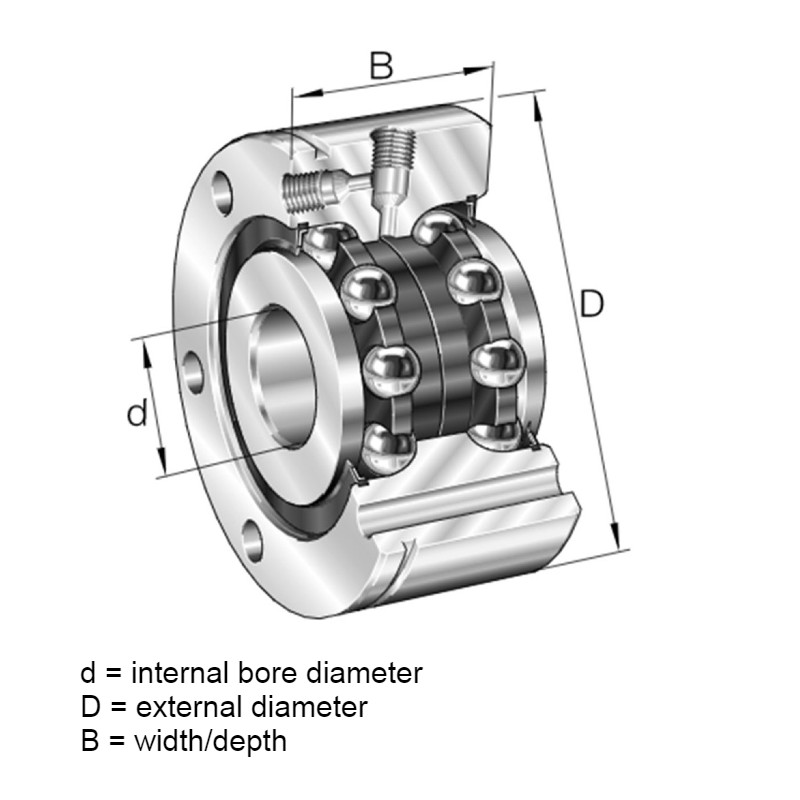

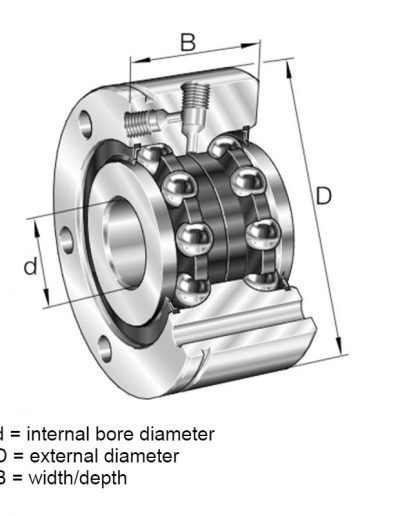

Dimensions:
Internal bore diameter: 30mm
External diameter: 80mm
Width: 28mm
Click here for full technical data on the INA Bearings website. INA are exceptionally well manufactured, high precision bearings from The Schaeffler Group based in Herzogenaurach, Germany.
